Auto-tune PID Temperature Controllers

DTH9; Low Cost Auto-tune PID Temperature Controller
  • DTH9 is a low cost optimized Auto-tune PID temperature control device with only control output and with only heating function. Control output may be relay or SSR or Relay+SSR at the same time - selectable. DTH9 has a fast and enhanced PID control algorithm suitable for applications like "hot runner" and etc.
  • 96mm x 96mm Enclosure front size
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET setting
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Selectable Control Output: Relay / SSR / Relay+SSR
  • Easy connection with plug-in connectors
DTH7; Low Cost Auto-tune PID Temperature Controller
  • DTH7 is a low cost optimized Auto-tune PID temperature control device with only control output and with only heating function. Control output may be relay or SSR or Relay+SSR at the same time - selectable. DTH7 has a fast and enhanced PID control algorithm suitable for applications like "hot runner" and etc.
  • 72mm x 72mm Enclosure front size
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET setting
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Selectable Control Output: Relay / SSR / Relay+SSR
  • Easy connection with plug-in connectors
DTH4; Low Cost Auto-tune PID Temperature Controller
  • DTH4 is a low cost optimized Auto-tune PID temperature control device with only control output and with only heating function. Control output may be relay or SSR or Relay+SSR at the same time - selectable. DTH4 has a fast and enhanced PID control algorithm suitable for applications like "hot runner" and etc.
  • 48mm x 48mm Enclosure front size
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET setting
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Selectable Control Output: Relay / SSR / Relay+SSR
  • Easy connection with plug-in connectors
DTH2; Low Cost Auto-tune PID Temperature Controller
  • DTH2 is a low cost optimized Auto-tune PID temperature control device with only control output and with only heating function. Control output may be relay or SSR or Relay+SSR at the same time - selectable. DTH4 has a fast and enhanced PID control algorithm suitable for applications like "hot runner" and etc.
  • 35mm x 77mm Enclosure front size
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET setting
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Selectable Control Output: Relay / SSR / Relay+SSR
  • Easy connection with plug-in connectors
DT109AX; Auto-tune PID Temperature Controller
  • DT109AX is the enhanced version of DT109A device. DT109AX has faster and enhanced PID control algorithm for applications like "hot runner" and etc.
  • 96mm x 96mm Enclosure front size
  • µP based, enhanced PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute, band or sensor failure alarm
  • ON-delay for OUT in cooling mode
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT107AX; Auto-tune PID Temperature Controller
  • DT107AX is the enhanced version of DT107A device. DT107AX has faster and enhanced PID control algorithm for applications like "hot runner" and etc.
  • 72mm x 72mm Enclosure front size
  • µP based, enhanced PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute, band or sensor failure alarm
  • ON-delay for OUT in cooling mode
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT106AX; Auto-tune PID Temperature Controller
  • DT106AX is the enhanced version of DT106A device. DT106AX has faster and enhanced PID control algorithm for applications like "hot runner" and etc.
  • 48mm x 96mm Enclosure front size
  • µP based, enhanced PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute, band or sensor failure alarm
  • ON-delay for OUT in cooling mode
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT105AX; Auto-tune PID Temperature Controller
  • DT105AX is the enhanced version of DT105A device. DT105AX has faster and enhanced PID control algorithm for applications like "hot runner" and etc.
  • 96mm x 48mm Enclosure front size
  • µP based, enhanced PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute, band or sensor failure alarm
  • ON-delay for OUT in cooling mode
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT104AX; Auto-tune PID Temperature Controller
  • DT104AX is the enhanced version of DT104A device. DT104AX has faster and enhanced PID control algorithm for applications like "hot runner" and etc.
  • 48mm x 48mm Enclosure front size
  • µP based, enhanced PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute, band or sensor failure alarm
  • ON-delay for OUT in cooling mode
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT102AX; Auto-tune PID Temperature Controller
  • DT102AX has a fast and enhanced PID control algorithm for applications like "hot runner" and etc.
  • 35mm x 77mm Enclosure front size
  • µP based, enhanced PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable 0.1 oC resolution for J,K,T and Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • “Anti-windup”
  • Minimum 1 second PID control period
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute, band or sensor failure alarm
  • ON-delay for OUT in cooling mode
  • Ramping after power on (soft-start)
  • Displays SET and PROCESS values
  • SET display can be set to ON or OFF
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT109A; Auto-tune PID Temperature Controller
  • 96mm x 96mm Enclosure front size
  • µP based, PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • Automatic “Overshoot” elimination in PID mode
  • “Anti-windup”
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute or band alarm
  • ON-delay for OUT in cooling mode
  • Displays SET and PROCESS values
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT107A; Auto-tune PID Temperature Controller
  • 72mm x 72mm Enclosure front size
  • µP based, PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • Automatic “Overshoot” elimination in PID mode
  • “Anti-windup”
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute or band alarm
  • ON-delay for OUT in cooling mode
  • Displays SET and PROCESS values
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT106A; Auto-tune PID Temperature Controller
  • 48mm x 96mm Enclosure front size
  • µP based, PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • Automatic “Overshoot” elimination in PID mode
  • “Anti-windup”
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute or band alarm
  • ON-delay for OUT in cooling mode
  • Displays SET and PROCESS values
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
DT105A; Auto-tune PID Temperature Controller
  • 96mm x 48mm Enclosure front size
  • µP based, PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • Automatic “Overshoot” elimination in PID mode
  • “Anti-windup”
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute or band alarm
  • ON-delay for OUT in cooling mode
  • Displays SET and PROCESS values
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors

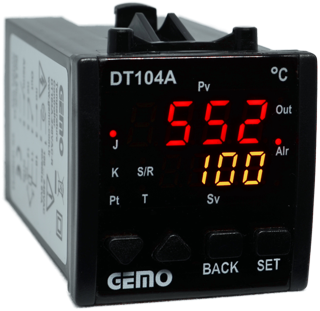

DT104A; Auto-tune PID Temperature Controller
  • 48mm x 48mm Enclosure front size
  • µP based, PID temperature controller with OUT and ALARM outputs
  • Auto-tuning for PID parameters
  • Sensor type: T/C (J,K,T,S,R), Pt100, selectable, multi-input
  • Selectable control type: P, PI, PD, PID or ON-OFF
  • Automatic “Overshoot” elimination in PID mode
  • “Anti-windup”
  • Upper and Lower limit for SET and ALARM settings
  • Selectable relative, absolute or band alarm
  • ON-delay for OUT in cooling mode
  • Displays SET and PROCESS values
  • Cold-junction compensation for T/C
  • Line compensation for Pt100
  • Excellent linearity with oC/mV and oC/Ohm look-up tables
  • Input “Offset” feature
  • Password protection
  • High accuracy
  • EEPROM memory to store settings
  • Optional SSR output
  • Easy connection with plug-in connectors
