Auto-tune PID Temperature Step Controllers

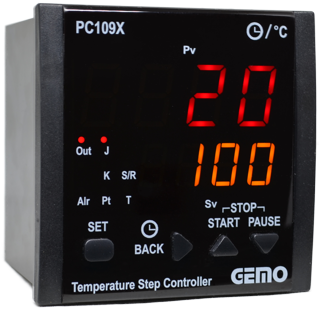

- PC109X is the enhanced version of PC109 device.
PC109X has faster and enhanced PID control algorithm. - 96mm x 96mm Enclosure front size
- PID temperature step controller with HEAT and ALARM outputs.
- 5 seperate programs
- Max. 30 steps per program
- Max. 99:59 hours for each step
- Delay operation; up to 99:59 hours
- Various power interruption recovery options
- Selectable power off option at the end of a program
- Alarm on option at the end of a program
- Security options for program selection, and start/stop/pause.
- Selectable jump to a different step option
- Auto-tuning for PID parameters
- Sensor type: T/C (J,K,S), Pt100, selectable, multi-input
- Selectable 0.1oC resolution for J,K,T and Pt100
- Selectable control type: P, PI, PD, PID or ON-OFF
- Automatic “Overshoot” elimination in PID mode with “Anti-windup”
- Selectable various alarm modes
- Displays SET, Process, Program No, Step no and Remaining time values
- Cold-junction compensation for T/C
- Line compensation for Pt100
- Excellent linearity with oC/mV and oC/Ohm look-up tables
- Input “Offset” feature
- Password protection
- High accuracy
- Non volatile memory to store settings
- Optional SSR output
- Easy connection with plug-in connectors

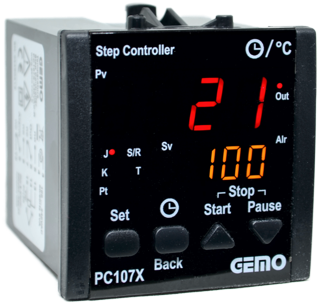

- PC107X is the enhanced version of PC107 device.
- PC107X has faster and enhanced PID control algorithm.
- 72mm x 72mm Enclosure front size
- PID temperature step controller with HEAT and ALARM outputs.
- 5 seperate programs
- Max. 30 steps per program
- Max. 99:59 hours for each step
- Delay operation; up to 99:59 hours
- Various power interruption recovery options
- Selectable power off option at the end of a program
- Alarm on option at the end of a program
- Security options for program selection, and start/stop/pause.
- Selectable jump to a different step option
- Auto-tuning for PID parameters
- Sensor type: T/C (J,K,S), Pt100, selectable, multi-input
- Selectable 0.1oC resolution for J,K,T and Pt100
- Selectable control type: P, PI, PD, PID or ON-OFF
- Automatic “Overshoot” elimination in PID mode with “Anti-windup”
- Selectable various alarm modes
- Displays SET, Process, Program No, Step no and Remaining time values
- Cold-junction compensation for T/C
- Line compensation for Pt100
- Excellent linearity with oC/mV and oC/Ohm look-up tables
- Input “Offset” feature
- Password protection
- High accuracy
- Non volatile memory to store settings
- Optional SSR output
- Easy connection with plug-in connectors
- 96mm x 96mm Enclosure front size
- µP based, PID temperature step controller with HEAT and ALARM outputs
- Auto-tuning for PID parameters
- Sensor type: T/C (J,K,S), Pt100, selectable, multi-input
- Selectable control type: P, PI, PD, PID or ON-OFF
- “Anti-windup”
- Maximum 20 steps, selectable
- Maximum 18 hours/step timer setting
- Selectable relative or absolute alarm
- Displays SET, Process, Step no and Remaining time values
- Cold-junction compensation for T/C
- Line compensation for Pt100
- Excellent linearity with oC/mV and oC/Ohm look-up tables
- Input “Offset” feature
- Password protection
- High accuracy
- EEPROM memory to store settings
- Optional SSR output
- Easy connection with plug-in connectors
- 72mm x 72mm Enclosure front size
- µP based, PID temperature step controller with HEAT and ALARM outputs
- Auto-tuning for PID parameters
- Sensor type: T/C (J,K,S), Pt100, selectable, multi-input
- Selectable control type: P, PI, PD, PID or ON-OFF
- “Anti-windup”
- Maximum 20 steps, selectable
- Maximum 18 hours/step timer setting
- Selectable relative or absolute alarm
- Displays SET, Process, Step no and Remaining time values
- Cold-junction compensation for T/C
- Line compensation for Pt100
- Excellent linearity with oC/mV and oC/Ohm look-up tables
- Input “Offset” feature
- Password protection
- High accuracy
- EEPROM memory to store settings
- Optional SSR output
- Easy connection with plug-in connectors
